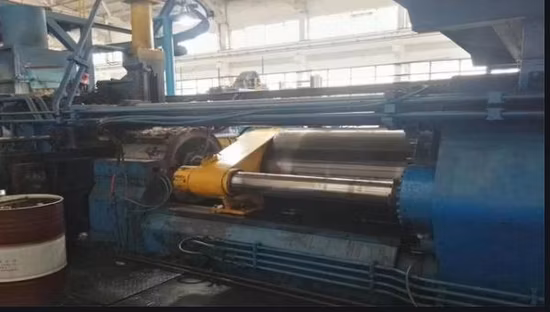

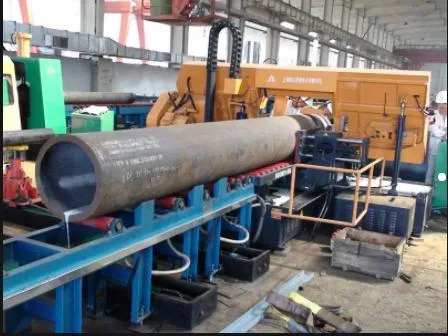

Piercing Mill Mandrel Circulating and Retaining System, Main Drive of The Tube Mill Extractor Sizing and Reducing Mill Unit Seamless Pipe Mill

Basic Info.

Model NO.	seamless
Condition	New
Customized	Customized
Theory	Hot Rolling
Application	Industry, Oil / Gas/ Water etc
Type	Pipe Production Line
Packing &Shipping	FCL
HS	8515219100
Capacity	5 Sets/ Month
Automatic	Full
Delivery Time	150- 200 Days
Billet Cutting	Band Saw
Billet Weight	≤250 Kg/PCS
Annual Output	Above 400000 Tons
Standard	API 5dp
Transport Package	FCL
Specification	according customtmized
Trademark	st
Origin	Hebei, China
HS Code	8515219100
Production Capacity	10 Sets / Month

Product Description

Piercing mill mandrel circulating and retaining system, main drive of the tube mill extractor sizing and reducing mill unit seamless pipe mill

Project overviewAccording to customer's requirements, the Ф90A-R hot rolling line is arranged. The unit adopts walking beam heating furnace, new type of cone type piercing mill, precision A-R pipe rolling mill, SRM, chain type cooling bed, and ten rolls high precision straightening machine and other advanced equipment. The annual output of the unit is about 40,000 tons.Parts of technical details

No.	Item	Pipe size			Steel grade	Capacity	Standard
		OD mm	WT mm	L m
1	Oil pipe,linepipe	33.4	3.38	12	J,K,N,L,P		API 5DP
2	Oil pipe,linepipe	33.4	4.55	12	J,K,N,L,P		API 5DP
3	Oil pipe,linepipe	33.4	6.35	12	J,K,N,L,P		API 5DP
4	Oil pipe,linepipe	42.2	3.56	12	J,K,N,L,P		API 5DP
5	Oil pipe,linepipe	42.2	4.85	12	J,K,N,L,P		API 5DP
6	Oil pipe,linepipe	42.2	6.35	12	J,K,N,L,P		API 5DP
7	Oil pipe,linepipe	48.3	3.68	12	J,K,N,L,P		API 5DP

Main equipment of the unit--Billet cutting(Band saw)--Walking beam heating furnace--New type cone type piercing mill--Precision A-R pipe rolling mill--18 stands SRM--Induction heating furnace--Chain type cooling bed--Ten rolls high precision straightening machine--Pre-finishing line (pipe cutting, magnetic flux leakage testing, checking, measuring length and weight, marking)
Process Drawing
Our partnersCertificate displayPacking &shipping Design& manufacture and acceptance standardOrganization name AbbreviationInternational Organization for Standardization ISONational Standard of the People's Republic of China GBProfessional Standards of the People's Republic of China ZBMinistry of Machinery Standards (Original) JBMinistry of Metallurgical Standard (Original) YB
Please contract us if you are interested in our machine line . Tks.
